Concrete Mixer With Pump

-

667 items in Type


Concrete Mixer With Pump Single Shaft, Twin Shaft and Planetary Concrete Mixers are being used in Concrete Batch Plants for producing all kinds of concretes.

More Details

Product Information

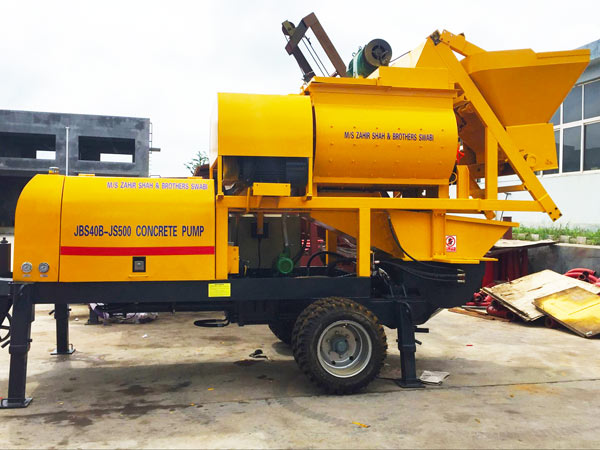

Concrete Mixer With Pump is a kind of multi-functional pump, it can realize the concrete mixing and conveying at the same time. It also can named cement mixer and pump. Concrete Mixer With Pump has the characteristics of high working efficiency. It conveys the concrete by using the pressure along the pipeline continuously to the construction site where need concrete mixture. So concrete mixer and pumping machine is a perfect combination between the concrete mixing and concrete conveying, which has the features of high efficiency, easy moving, low cost, etc.

Haomei machinery mainly provideConcrete Mixer With Pump with the models of EMP40, DMP4, DMP50. EMP is electirc engine, and DMP is diesel engine. You can see the details from the parameter tables.

Parameter Unit DMP40

Power

kw Weichai diesel engine; 66kw
Whole machine Length mm 4500
Width mm 1850
Height mm 1950
Weight kg 4000
Mixer Mixer model / JZM450
Theoretical mixing capacity m3/h 15-25
Maximum aggregate size mm 40
Working cycle time s 72
Feeding height mm 1400
Hopper capacity m3 0.65
Pumping system Theoretical pumping capacity m3/h 30
Theoretical pumping pressure MPa 8
Delivery cylinder / 200*800
Hydraulic system / Open
Distribution valve / S valve
System pressure MPa 28
Delivery pipe diameter mm 125
Parameter Unit EMP40
Power





kw 45
Whole machine Length mm 4250
Width mm 2100
Height mm 2700
Weight kg 4000
Mixer Mixer model / JZM450
Theoretical mixing capacity m3/h 15-25
Maximum aggregate size mm 40
Working cycle time s 72
Feeding height mm 1400
Hopper capacity m3 0.65
Pumping system Theoretical pumping capacity m3/h 40
Theoretical pumping pressure MPa 8
Delivery cylinder / 200*800
Hydraulic system / Open
Distribution valve / S valve
System pressure MPa 28
Delivery pipe diameter mm 125
Parameter Unit DMP50

Power

kw Weichai diesel engine; 66kw
Whole machine Length mm 4680
Width mm 2100
Height mm 2300
Weight kg 4200
Mixer Mixer model / JZM450
Theoretical mixing capacity m3/h 15-25
Maximum aggregate size mm 40
Working cycle time s 72
Feeding height mm 1400
Hopper capacity m3 0.65
Pumping system Theoretical pumping capacity m3/h 45
Theoretical pumping pressure MPa 10
Delivery cylinder / 230*800
Hydraulic system /
