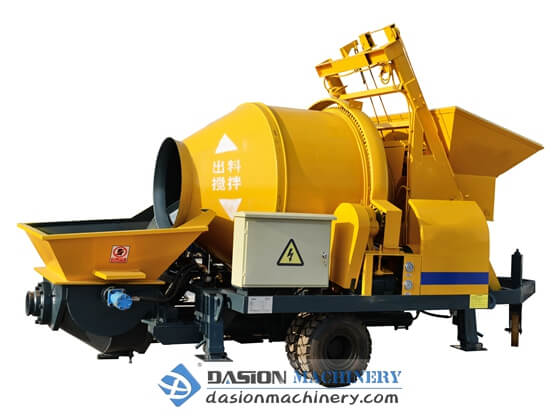

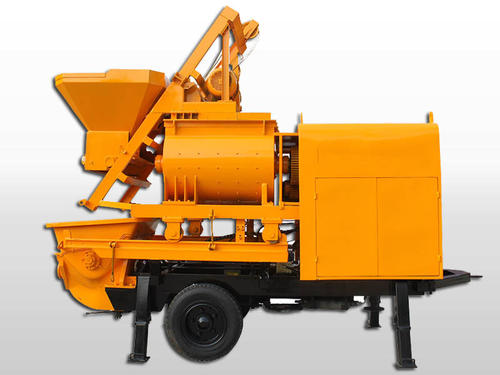

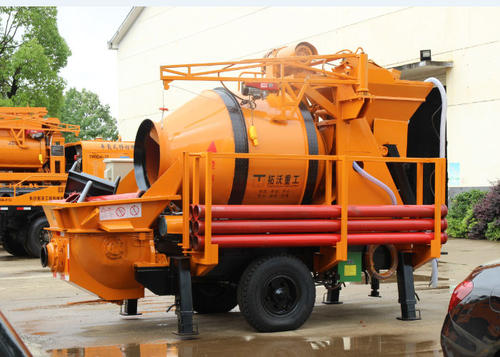

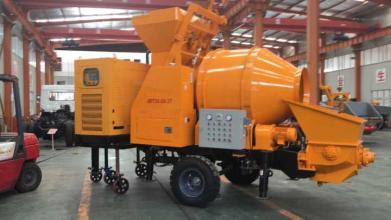

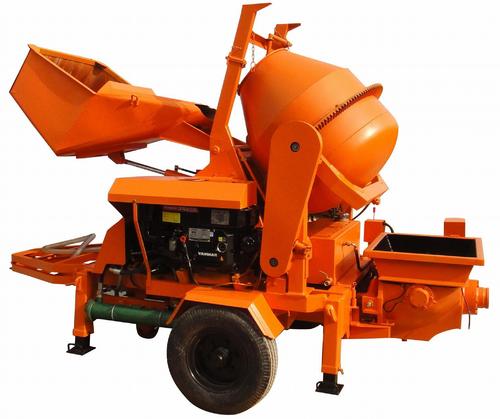

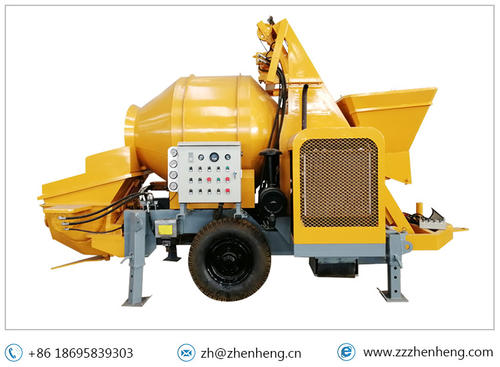

Electric Concrete Mixer With Pump
-1286 items in Type
Our Electric Concrete Mixer With Pump is a modern mechanical equipment, which can mix cement, aggregate and water into a concrete mixture with certain ratio.
More DetailsProduct Information
Electric Concrete Mixer With Pump is a kind of multi-functional pump, it can realize the concrete mixing and conveying at the same time. It also can named cement mixer and pump. Electric Concrete Mixer With Pump has the characteristics of high working efficiency. It conveys the concrete by using the pressure along the pipeline continuously to the construction site where need concrete mixture. So concrete mixer and pumping machine is a perfect combination between the concrete mixing and concrete conveying, which has the features of high efficiency, easy moving, low cost, etc.
Haomei machinery mainly provideElectric Concrete Mixer With Pump with the models of EMP40, DMP4, DMP50. EMP is electirc engine, and DMP is diesel engine. You can see the details from the parameter tables.
| Parameter | Unit | DMP40 | |
|
Power |
kw | Weichai diesel engine; 66kw | |
| Whole machine | Length | mm | 4500 |
| Width | mm | 1850 | |
| Height | mm | 1950 | |
| Weight | kg | 4000 | |
| Mixer | Mixer model | / | JZM450 |
| Theoretical mixing capacity | m3/h | 15-25 | |
| Maximum aggregate size | mm | 40 | |
| Working cycle time | s | 72 | |
| Feeding height | mm | 1400 | |
| Hopper capacity | m3 | 0.65 | |
| Pumping system | Theoretical pumping capacity | m3/h | 30 |
| Theoretical pumping pressure | MPa | 8 | |
| Delivery cylinder | / | 200*800 | |
| Hydraulic system | / | Open | |
| Distribution valve | / | S valve | |
| System pressure | MPa | 28 | |
| Delivery pipe diameter | mm | 125 | |
| Parameter | Unit | EMP40 | |
| Power
|
kw | 45 | |
| Whole machine | Length | mm | 4250 |
| Width | mm | 2100 | |
| Height | mm | 2700 | |
| Weight | kg | 4000 | |
| Mixer | Mixer model | / | JZM450 |
| Theoretical mixing capacity | m3/h | 15-25 | |
| Maximum aggregate size | mm | 40 | |
| Working cycle time | s | 72 | |
| Feeding height | mm | 1400 | |
| Hopper capacity | m3 | 0.65 | |
| Pumping system | Theoretical pumping capacity | m3/h | 40 |
| Theoretical pumping pressure | MPa | 8 | |
| Delivery cylinder | / | 200*800 | |
| Hydraulic system | / | Open | |
| Distribution valve | / | S valve | |
| System pressure | MPa | 28 | |
| Delivery pipe diameter | mm | 125 | |
| Parameter | Unit | DMP50 | |
|
Power |
kw | Weichai diesel engine; 66kw | |
| Whole machine | Length | mm | 4680 |
| Width | mm | 2100 | |
| Height | mm | 2300 | |
| Weight | kg | 4200 | |
| Mixer | Mixer model | / | JZM450 |
| Theoretical mixing capacity | m3/h | 15-25 | |
| Maximum aggregate size | mm | 40 | |
| Working cycle time | s | 72 | |
| Feeding height | mm | 1400 | |
| Hopper capacity | m3 | 0.65 | |
| Pumping system | Theoretical pumping capacity | m3/h | 45 |
| Theoretical pumping pressure | MPa | 10 | |
| Delivery cylinder | / | 230*800 | |
| Hydraulic system | / | ||
