mobile concrete batching plant youtube
-1805 items in Type
haomei machinery is a leading supplier of highly durable mobile concrete batching plant youtube.
More DetailsProduct Information

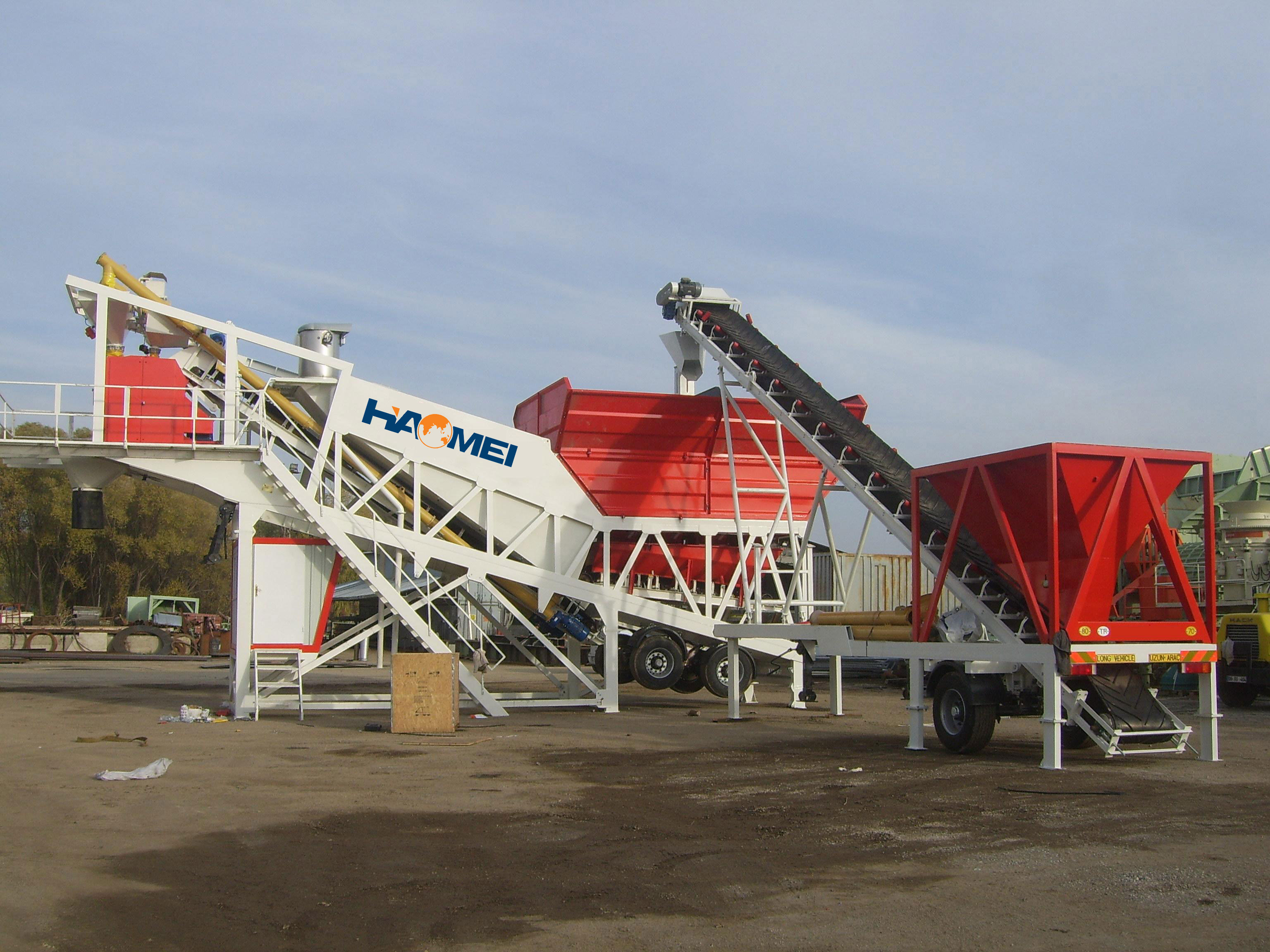

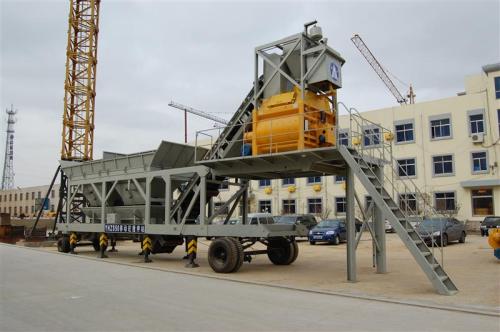

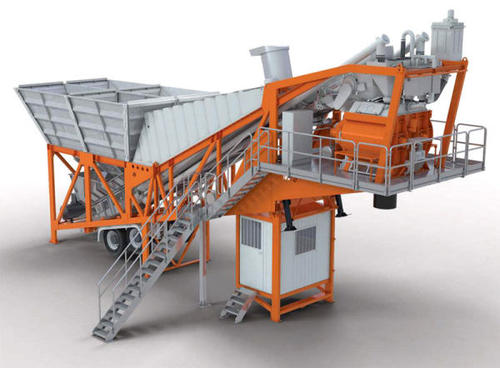

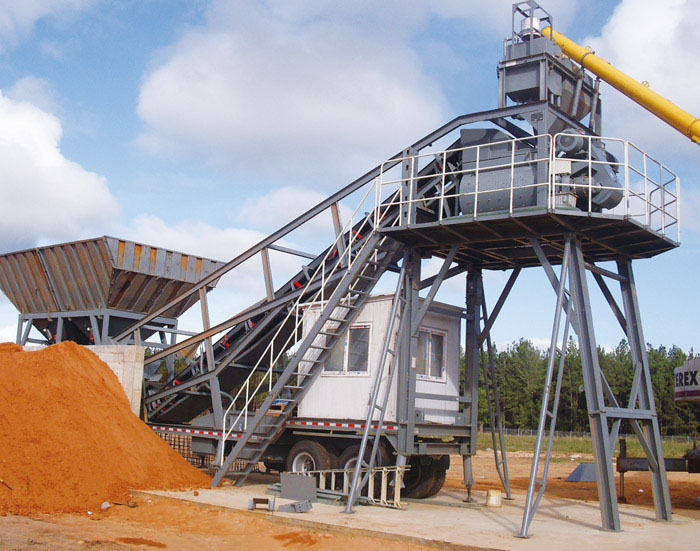

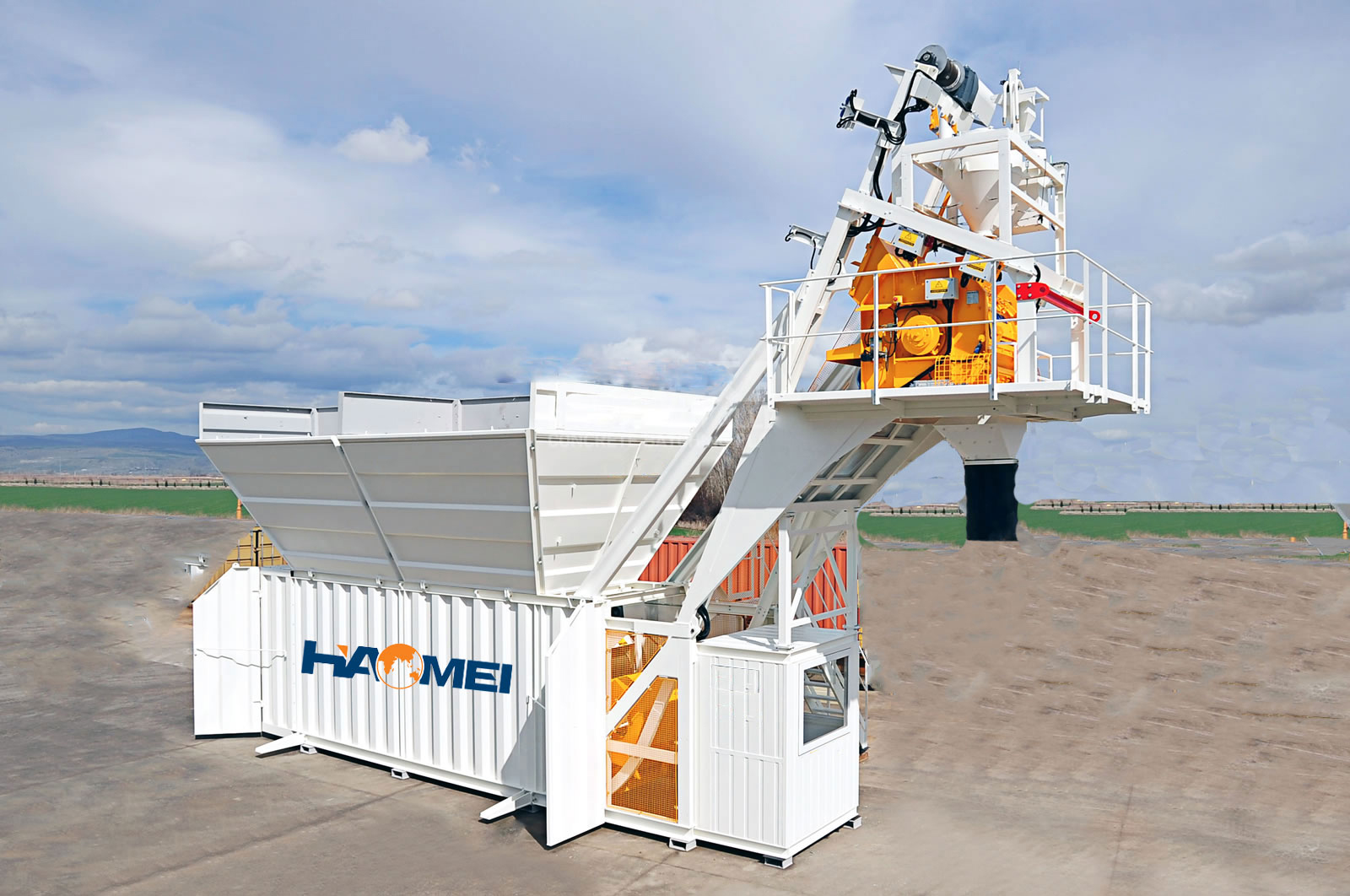

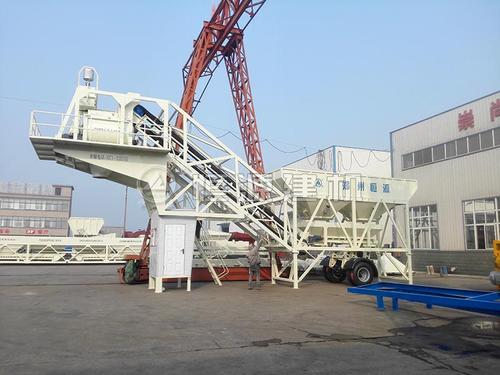

The mobile concrete batching plant youtube is a concrete production equipment that concentrates the material storage, weighing, conveying, stirring, unloading and fully automatic control system of the concrete mixing plant and a dragging unit; It is the same as all the action processes, operation methods and maintenance of the fixed automatic mixing station; At the same time, it has the unique characteristics such as flexible movement, quick and simple disassembly, simple storage management, etc.. It is an excellent model for mobile construction of public railways, bridges, ports, and other projects.
mobile concrete batching plant youtube main technical specifications
Model | YHZS60 | YHZS60 | YHZS75 | YHZS100 |
Theoretical productivity | 50 | 60 | 75 | 100 |
Unloading height | 4 | 4 | 4 | 4 |
Aggregate storage bin capacity | 10 | 10 | 16 | 16 |
Aggregate number | 2-4 | 2-4 | 2-4 | 2-4 |
Transmission capscity of inclined belt conveyer | 300 | 300 | 280 | 280 |
The maximum transmission capacity of serew conveyer | SJ1000 | SJ1000 | SJ1500 | SJ2000 |
The power | 75 | 75 | 100 | 115 |
Aggregate weighing range and accuracy | 2400±2% | 2500±2% | 3600±2% | 4800±2% |
Powder weighing range and accuracy | 600±1% | 600±1% | 900±1% | 1200±1% |
Water weighing range and accuracy | 300±1% | 300±1% | 400±1% | 500±1% |
Additive weighing range and accuracy | 20±1% | 30±1% | 30±1% | 30±1% |
Main features of mobile concrete batching plant youtube:
1,rapid disassembly, easy to move
With the exception of external equipment such as spiral conveyor and cement warehouse, all the wiring of the mixing station does not need to be removed. It only takes 30 tons of crane to cooperate and can be removed in one day. When installing, if the ground is flat and solid, no foundation is required. Production can be put in place on the same day. It is very suitable for units with tight construction requirements.
The station is equipped with tires and tractor pins, allowing up to 50 km/h when dragged by a trailer. The total weight of all equipment at the mixing station is about 21 tons, and all accessories are removed at the station.
2,good mixing performance
The use of a strong double shaft mixer can be used for the shortest mixing time to achieve uniform stirring. For dry hard, semi-dry hard, plastic and various proportions of concrete can complete a good stirring.
3,high-grade configuration, high reliability, accurate measurement, convenient operation
The main electrical components of the mixing engine reducer, metering sensor, and control system are all imported components, which not only greatly reduces the failure rate of the equipment, but also improves the measurement accuracy of the equipment.
The whole machine adopts computer control, which can be operated automatically or manually. The operation is simple and easy to master. Dynamic panel display, can clearly understand the operation of the components, at the same time can store and print report data, for production scheduling management provides great convenience.
Packaging & Shipping
1. Packaging
A. 40' HQ containers will be needed;
B. A wooden-box with the size of 60cm*60cm*60cm will be used for small items like bolt, nult, screw etc.
2. Shipping :
by sea or by train; we have rich experience of shipping by sea or by train;
By Sea | By Rail | |
If there are special circumstances we can decide according to your request. | ||
Payment Terms | 30% of total price shall be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery. |
|
Delivery Time | 7 working days after receiving down payment |
Our Services
1. Any inquiry will be replied within 12 hours.
2. Well-trained and experienced staff to answer all your inquiries in fluent English and Russia.
3. Factory visit is welcomed and free airport pick up service.
4. Engineers will go to clients' site for guiding the installation and test-running.
5. Spare parts supply,We will keep your know the complete data, when you need any spare parts, we will send to you in a fast way.
6. 12 months super long time guarantee period.
7. Customer-designed is received.
